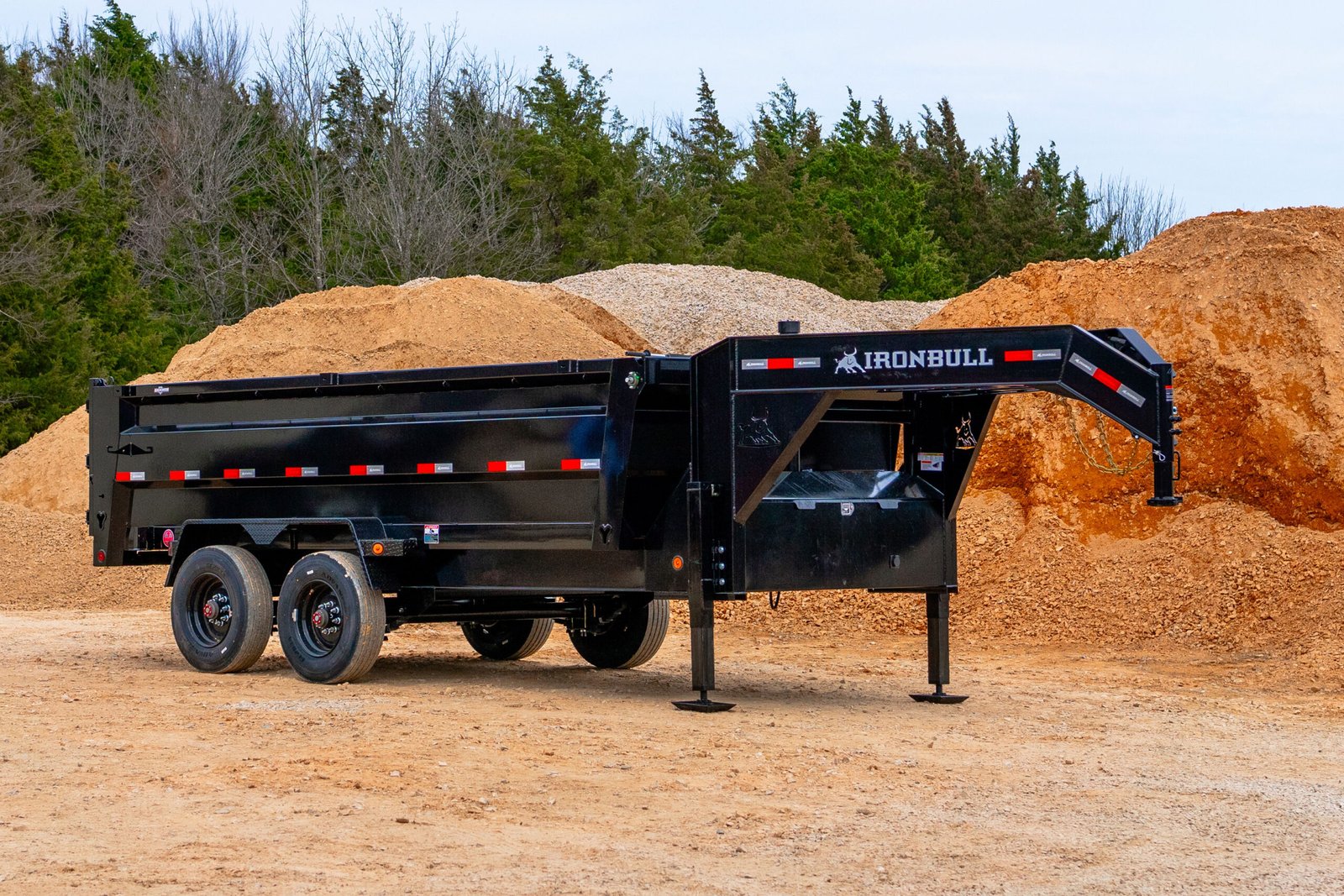

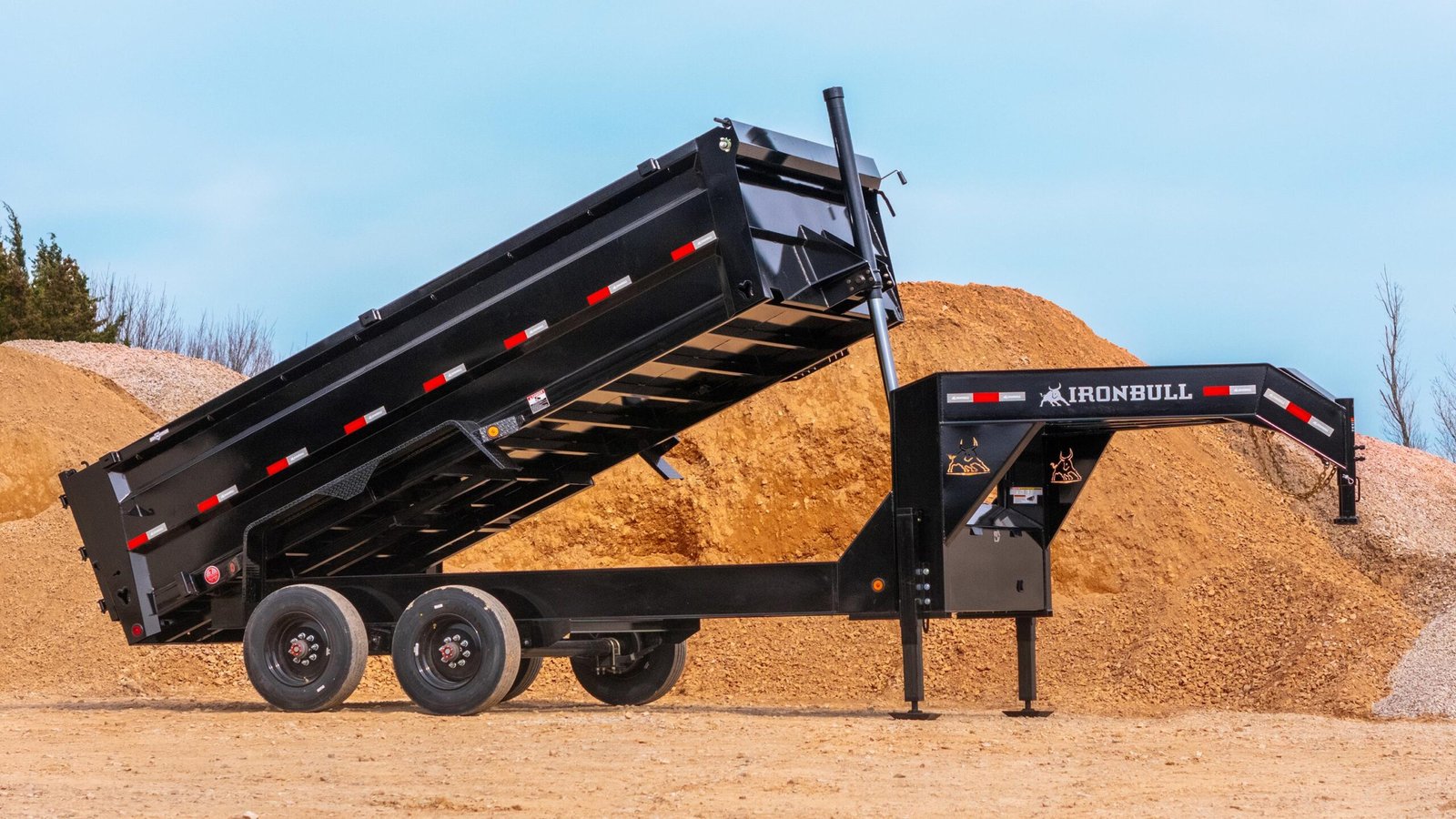

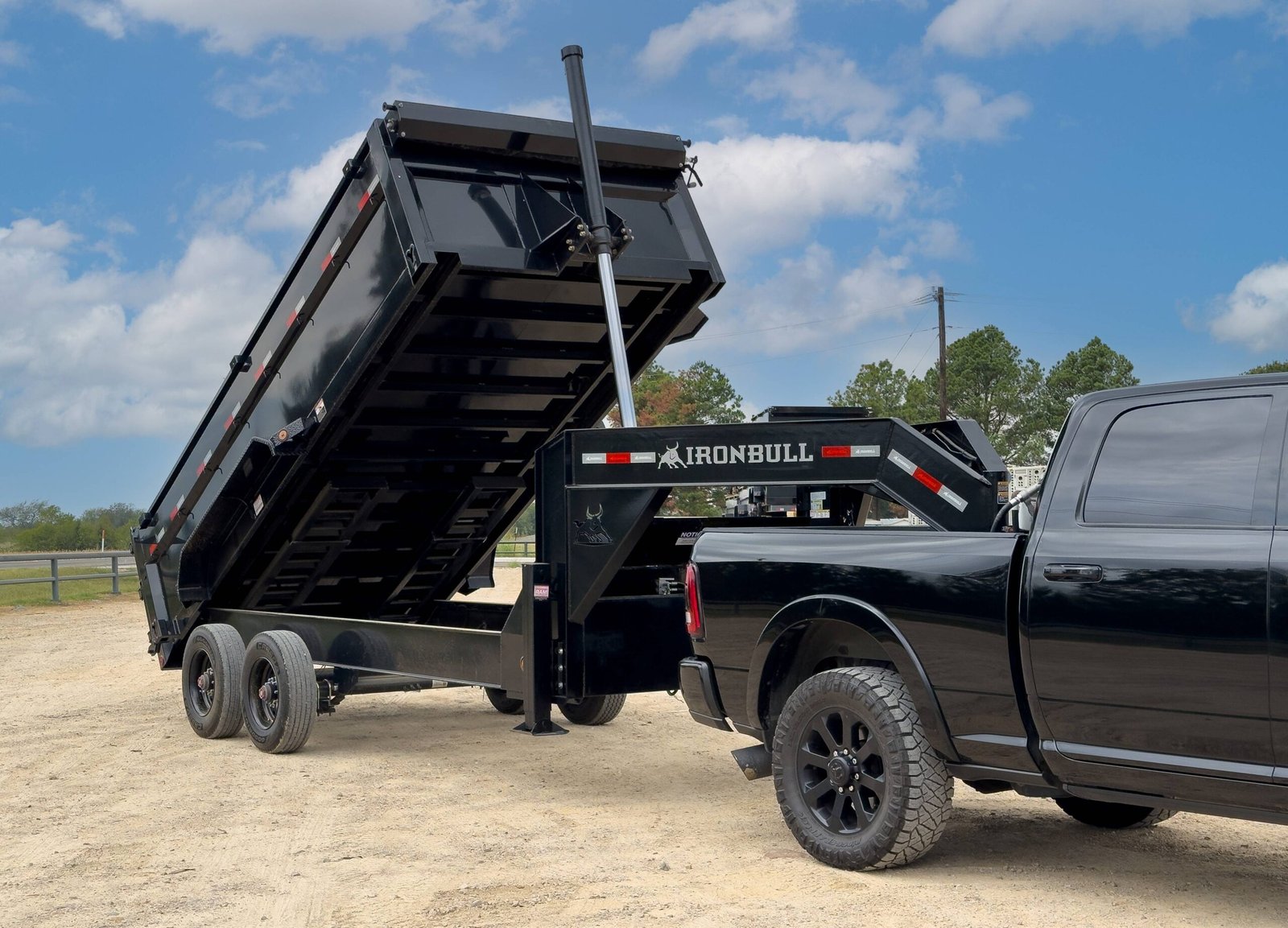

Iron Bull Trailers DHG22 – 22,000 lb GVWR Super Single 10k Gooseneck Dump Trailer (Beast Model)
The Iron Bull trailers DHG22 Dump Trailer – “Beast” Model is a heavy‑duty 22,000 lb GVWR gooseneck dump trailer built to handle the toughest hauling jobs in construction, landscaping, and heavy trucking. Engineered for maximum performance and rugged durability, the DHG22 combines a 12″ I‑Beam frame, neck, and risers with a 22,000 lb GVWR rating and 2 x 10,000 lb spring axles to deliver a dump trailer that works as hard as you do. Designed in the 83″ x 16′ size, this model delivers a compact, maneuverable footprint with serious payload capacity for gravel, dirt, mulch, demolition debris, and other heavy materials.
Inside, the DHG22 features a strong steel bed, high‑side walls, and a reliable hydraulic hoist system engineered for consistent, smooth dumping action. Diamond‑plate fenders, standard wiring harness, D‑rings, and heavy‑duty components round out a package built for daily commercial use. Whether you’re hauling at a job site, landfill, or quarry, the Iron Bull DHG22 Super Single 10k dump trailer is built to deliver rugged construction, dependable performance, and long‑term value.
Specifications
brochures
Standard Features

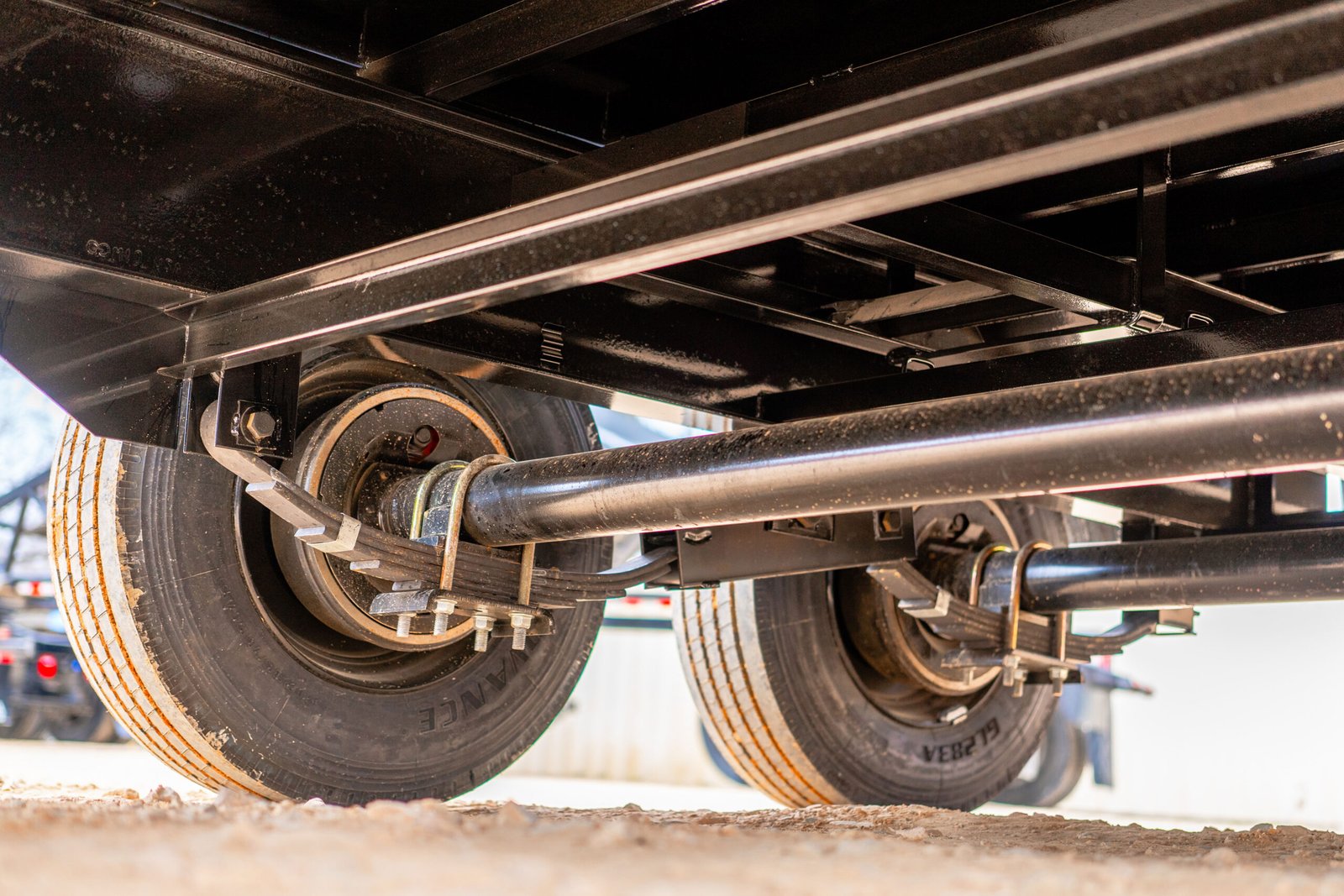

| 2 x 10,000 lb spring axles (2 electric brakes) | ST235/75R17.5 LRJ radial tires | 12″ I‑beam frame |
| 12″ I‑beam riser | 12″ I‑beam neck | 36″ 10‑gauge dump sides (standard) |
| Gooseneck 2 5/16″ adjustable 25,000 lb coupler | Heavy‑duty 16″ x 96″ slide‑in ramps | Diamond‑plate fenders (weld‑on) |

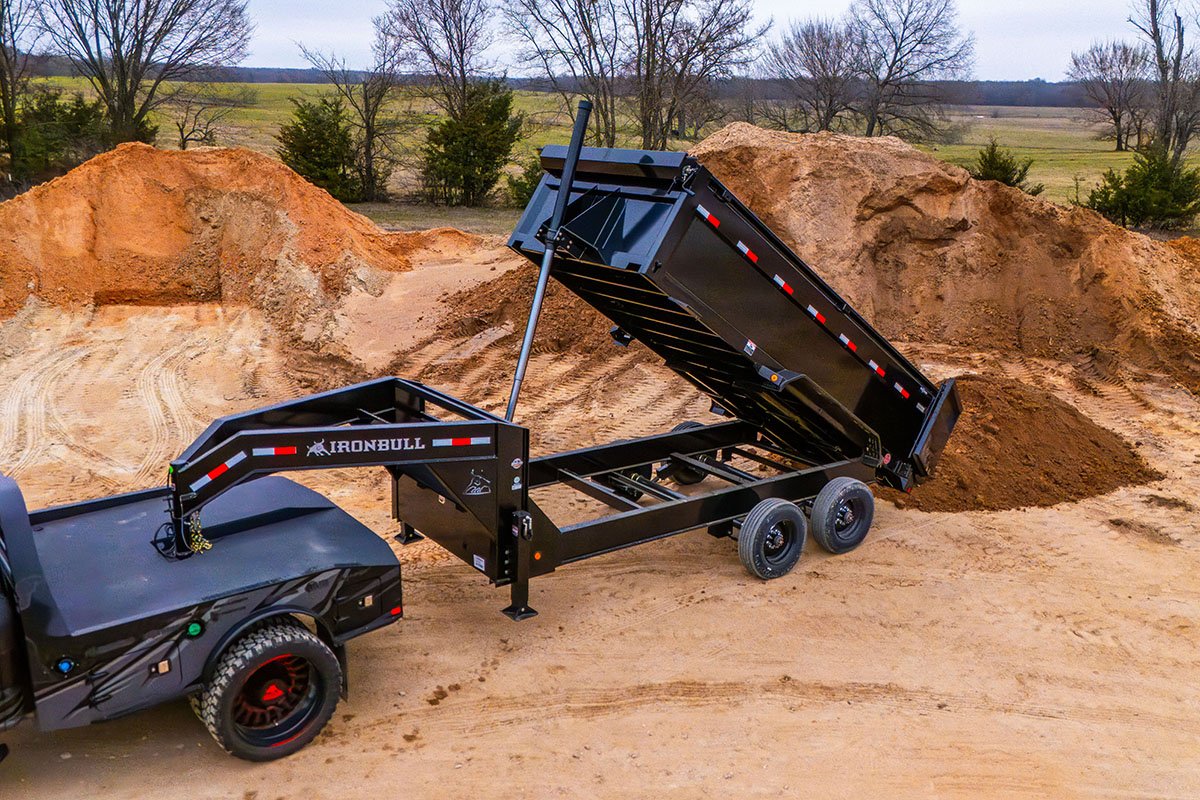

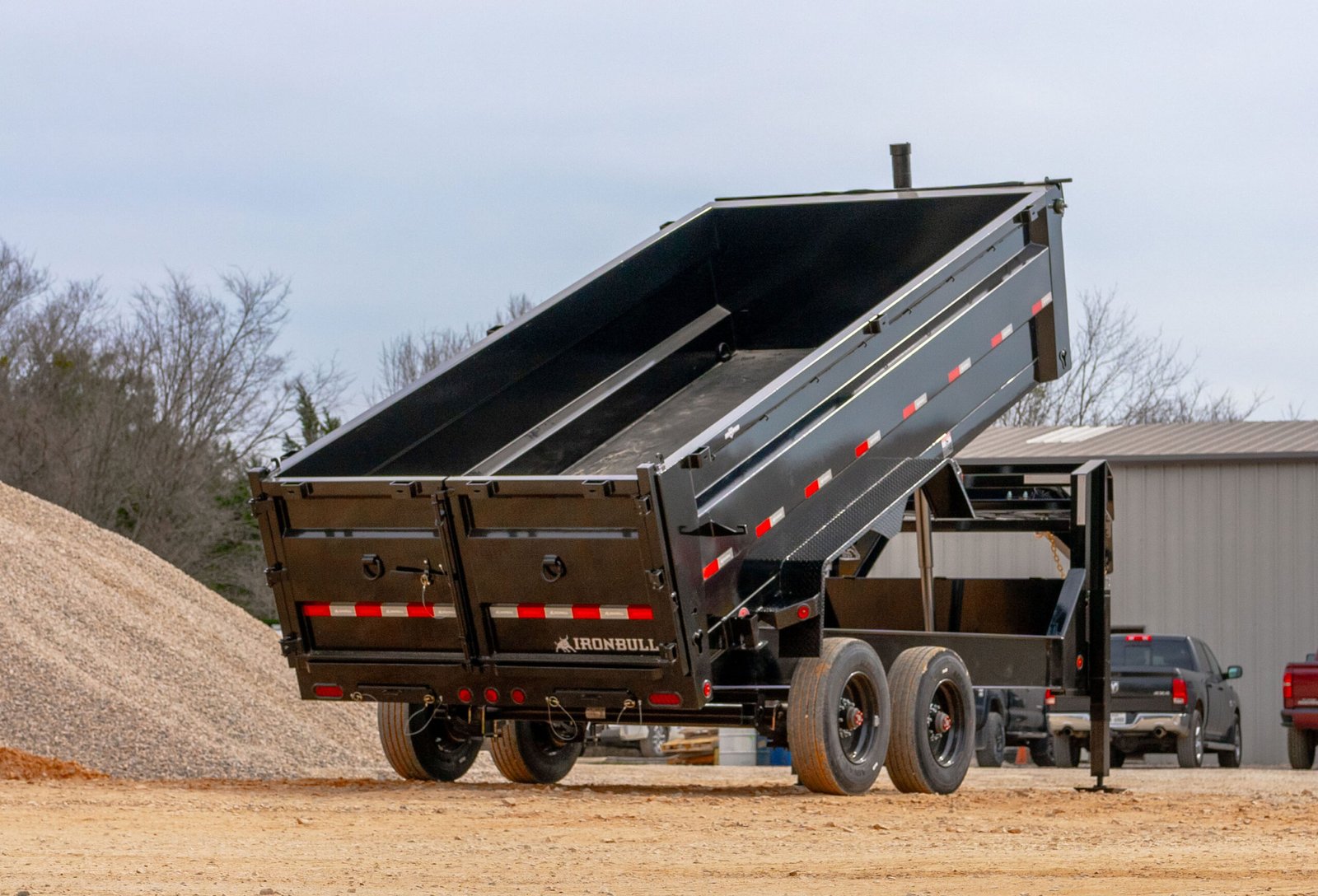

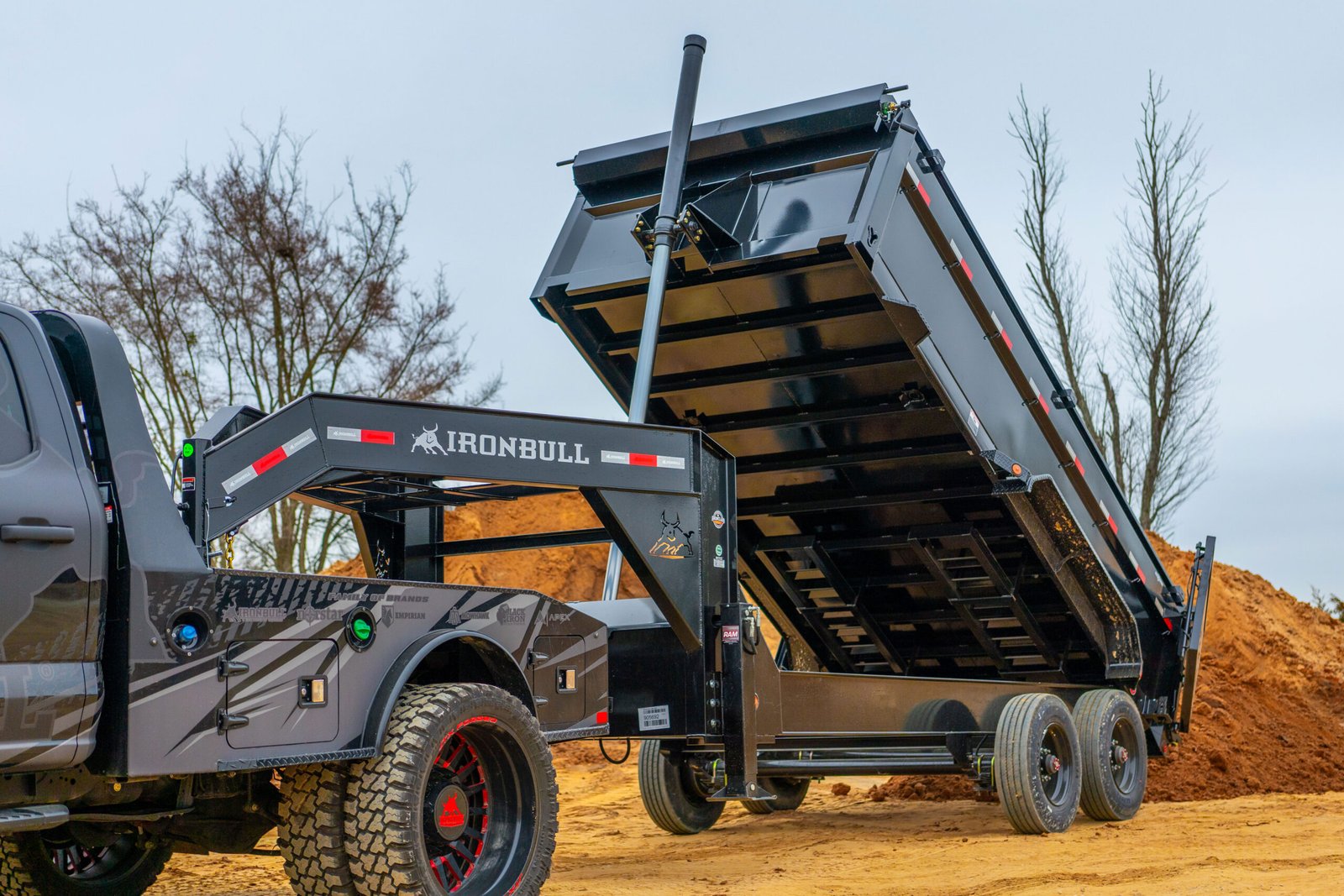

| 2 x 10,000 lb spring‑loaded drop‑leg jacks | Telescopic 12‑ton x 144″ hoist | Front‑mount tarp system |
| 3″ x 5/8″ weld‑on D‑rings (4 ea.) | Spare tire mount (weld‑on) | Side step plate |
| Powder coat and primer | 36″ deck height | Standard wiring harness |
