Iron Bull Trailers FLG22 HD Low-Pro Gooseneck Equipment
The Iron Bull trailers FLG22 HD Low-Pro Gooseneck is built for serious hauling, offering rugged strength, stable towing, and dependable performance for demanding equipment transport. Designed with a low-profile pierced frame that lowers the deck by 3 inches, this trailer delivers a lower center of gravity, improved cornering stability, and a reduced loading angle for easier equipment loading. Available in sizes from 102″ x 20′ to 40′ with a GVWR of 23,900, the FLG22 is a heavy-duty gooseneck trailer made to handle tough jobs with confidence.
Engineered for long-lasting performance, the Iron Bull FLG22 features a 12″ 19 lb/ft I-beam main frame, heavy 10″ I-beam crossmembers, and 3″ channel crossmembers on 16″ centers for added strength and support. The standard pipe bridge uses heavy SCH40 construction to reduce torque under heavy loads, while the 2″ x 8″ treated pine decking provides a durable hauling surface. A locking front toolbox, dual front side steps, stake pockets, pipe spools, rub rails, and an adjustable coupler all come standard to improve usability and versatility on the jobsite.
Built with a sealed wiring harness, TecNiq lifetime recessed LED lighting, electric brake axles, radial tires, and a fresh powder coat finish, the Iron Bull FLG22 combines reliable function with a clean, professional look. With multiple tail options available, including Rampage ramps or a hydraulic dove tail, this low-pro gooseneck equipment trailer is ready to meet the needs of contractors, farmers, and heavy equipment operators who want maximum strength, easier loading, and dependable towing performance.
Specifications
Unit weights are approximate and may vary depending on options.
Standard Features
| Standard Feature | Details |
|---|---|
| Frame and Neck | 12″ I-Beam frame and neck, 19 lbs/ft |
| Tires | 235/80R16 radial tires |
| Deck | Low-pro deck |
| Coupler | 2 5/16″ adjustable coupler |
| Crossmembers | 3″ structural crossmembers |
| Front Bumper Rail | 2.5″ x 2.5″ front bumper rail |
| Tool Box | Lockable full-neck-width tool box |
| Hardware | Rub rail, stake pockets, and pipe spools |
| Bridge | Standard torque tube and underframe bridge |

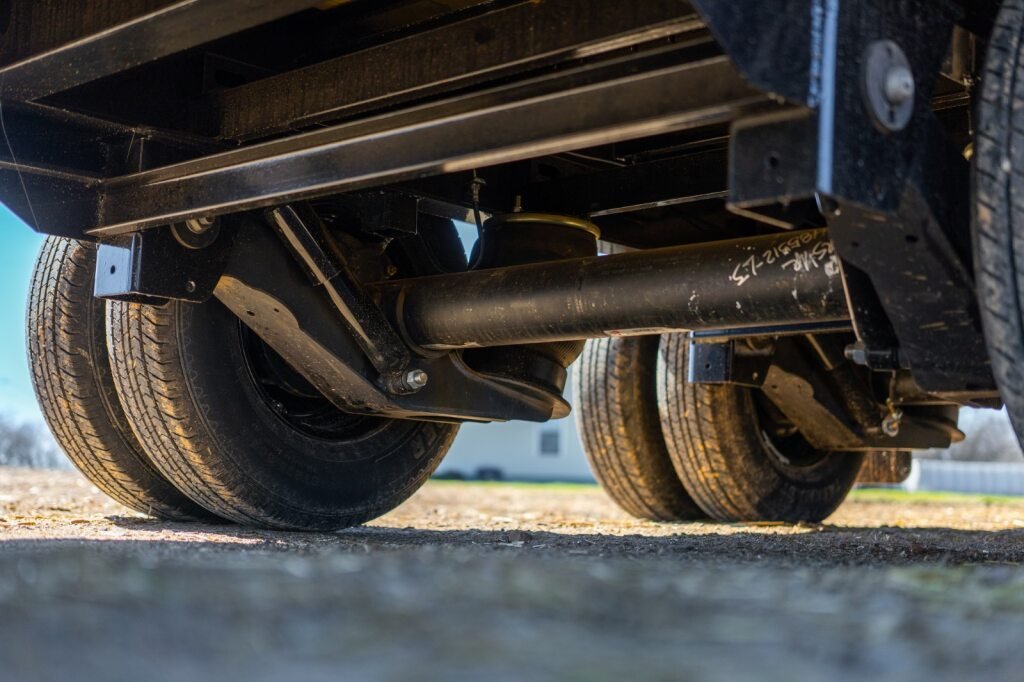

| Suspension System | Heavy-duty suspension system |
| Brake Axles | 2 – 10K electric brake axles |
| Spring Suspension | Multi-leaf slipper spring suspension |
| Hubs | E-Z Lube hubs |
| Gooseneck Box | 25″ gooseneck box |

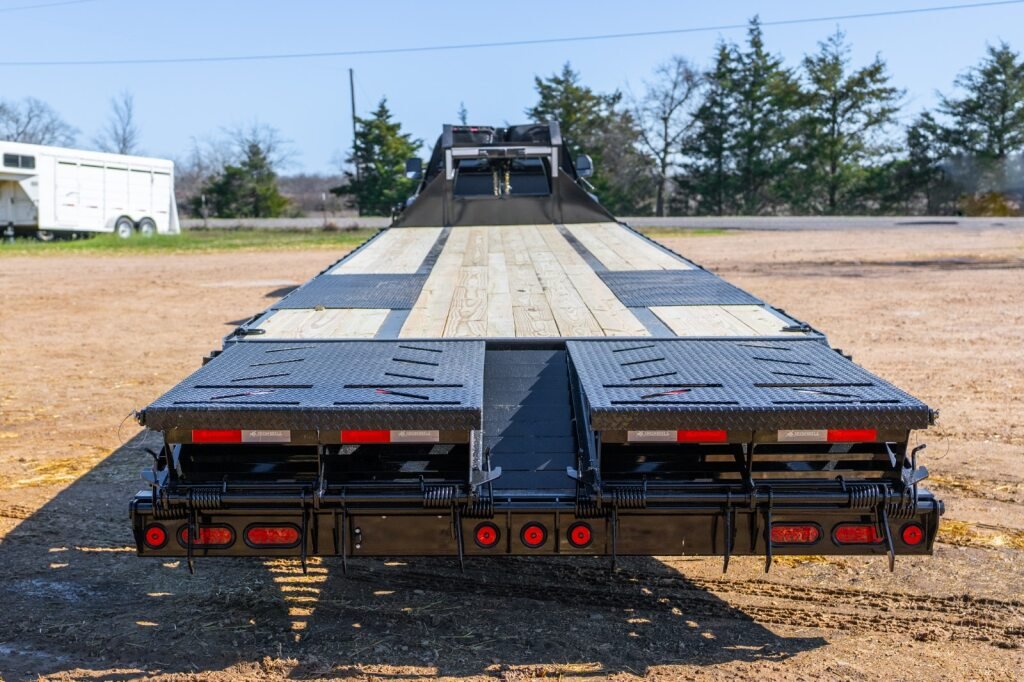

| Ramps | 8′ slide-in ramps |

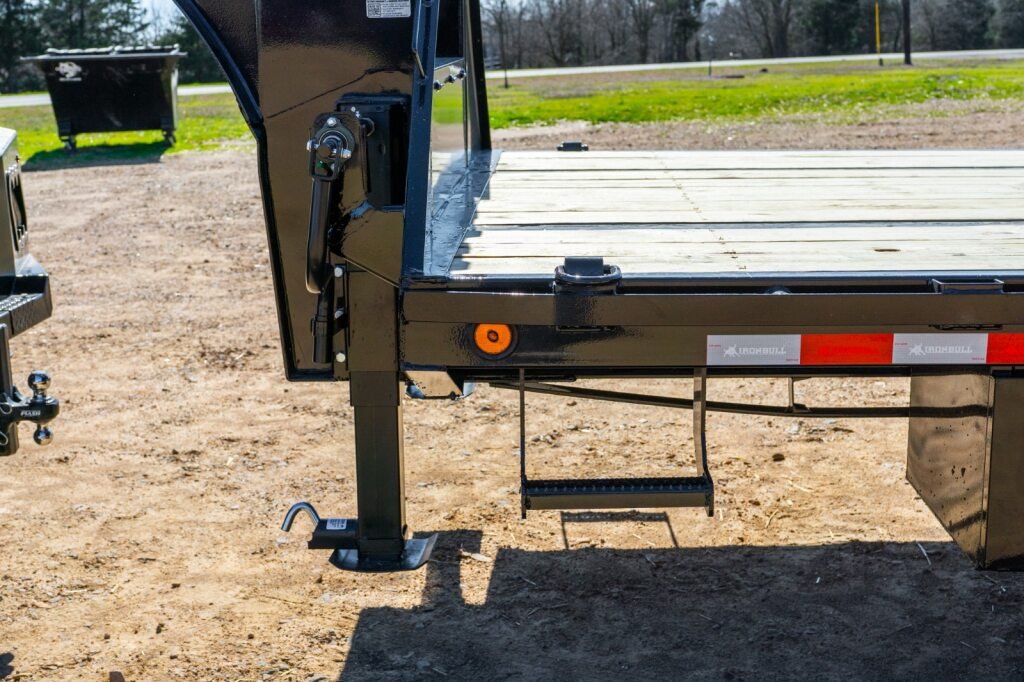

| Jacks | 2 – 10K drop-leg jacks |
| Floor | Treated pine 2″ x 8″ floor |

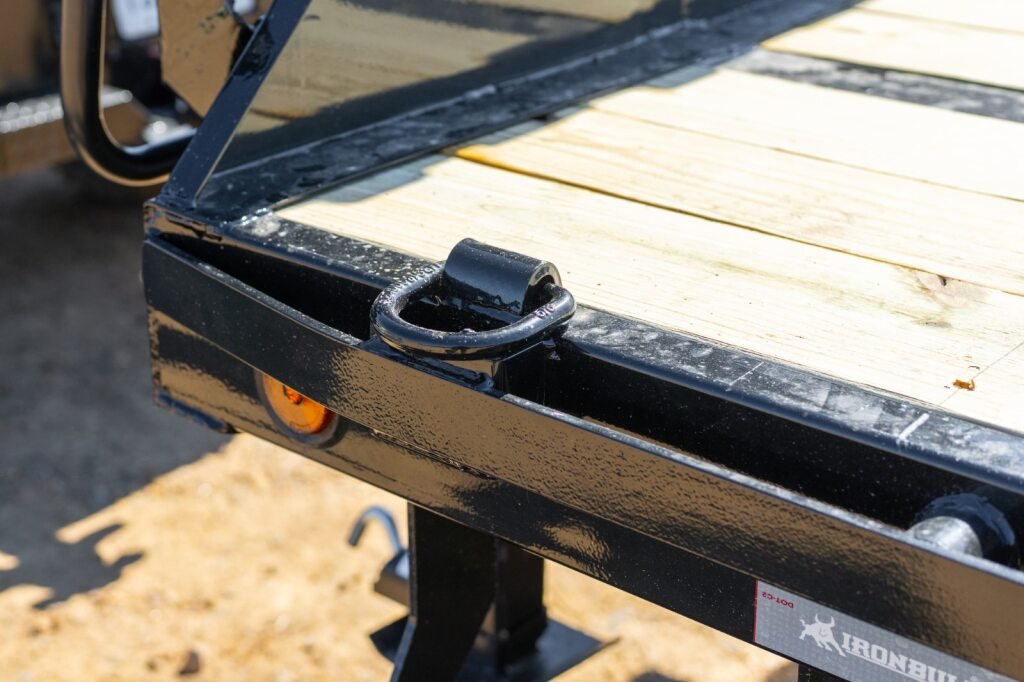

| D-Rings | 4 standard 3″ D-rings |
| Wheels | Black mod wheels |
| Spare Tire | Spare tire and mount |
| Lighting | Lifetime LED lighting |
| Lighting Approval | DOT-approved lighting |
| Harness | Molded sealed harness with resistors |
| Plug | 7-way receiver female plug with adapter |
| Finish | Powder coat and primer |
| Deck Height | 34″ deck height |
options
| Option 1 | Option 2 | Option 3 | Option 4 | Option 5 |
|---|---|---|---|---|
| 14-Ply 235/85 Tire Upgrade (ea.) | Winch Plate 1/2” (in neck) | Weld On Track with Adjustable Ratchets Every 5’ | Weld On Ratchets Every 5’ (per ft) | Weld On Ratchet Track Only (per ft) |
| 17.5” x 6.75” Tire Upgrade (ea.) | Cold Weather Harness: -85°F to 221°F | Additional Side Tool Box (ea.) | Deck Over Neck | 12” Crossmembers (per ft) |
| 6’ Spread Axles | 2 – 12k Hydraulic Jacks | 2 Speed Drop-Leg Jacks | Tube Rear Support Stands | 5’ Self Cleaning Dove Tail with 3 Flip-Over Ramps |
| 5’ Self Cleaning Dove Tail with 2 Flip-Over Ramps | 5’ Self Cleaning Dove Tail with Slide-in Ramps | Rampage Ramps (2 – 40” Flip-Over Ramps w 5’ Self Cleaning Dove) | 3 – 12,000 lb Electric Over Hydraulic Brake Axles | 3 – 12,000 lb Electric Brake Axles |
| 3 – 10,000 lb Electric Over Hydraulic Brake Axles | 3 – 10,000 lb Electric Brake Axles | 2 – 15,000 lb Air Ride Axles | 2 – 15,000 lb Electric Brake Axles | 2 – 12,000 lb Electric Over Hydraulic Disc Brake |
| 2 – 12,000 lb Electric Brake Axles | 2 – 10,000 lb Electric Over Hydraulic Disc Axles |
