Iron Bull Trailers TLG14 Low Pro Gooseneck Tilt

Iron Bull Trailers TLG14 Low Pro Gooseneck Tilt Trailer – Low‑Profile Tilt Deck

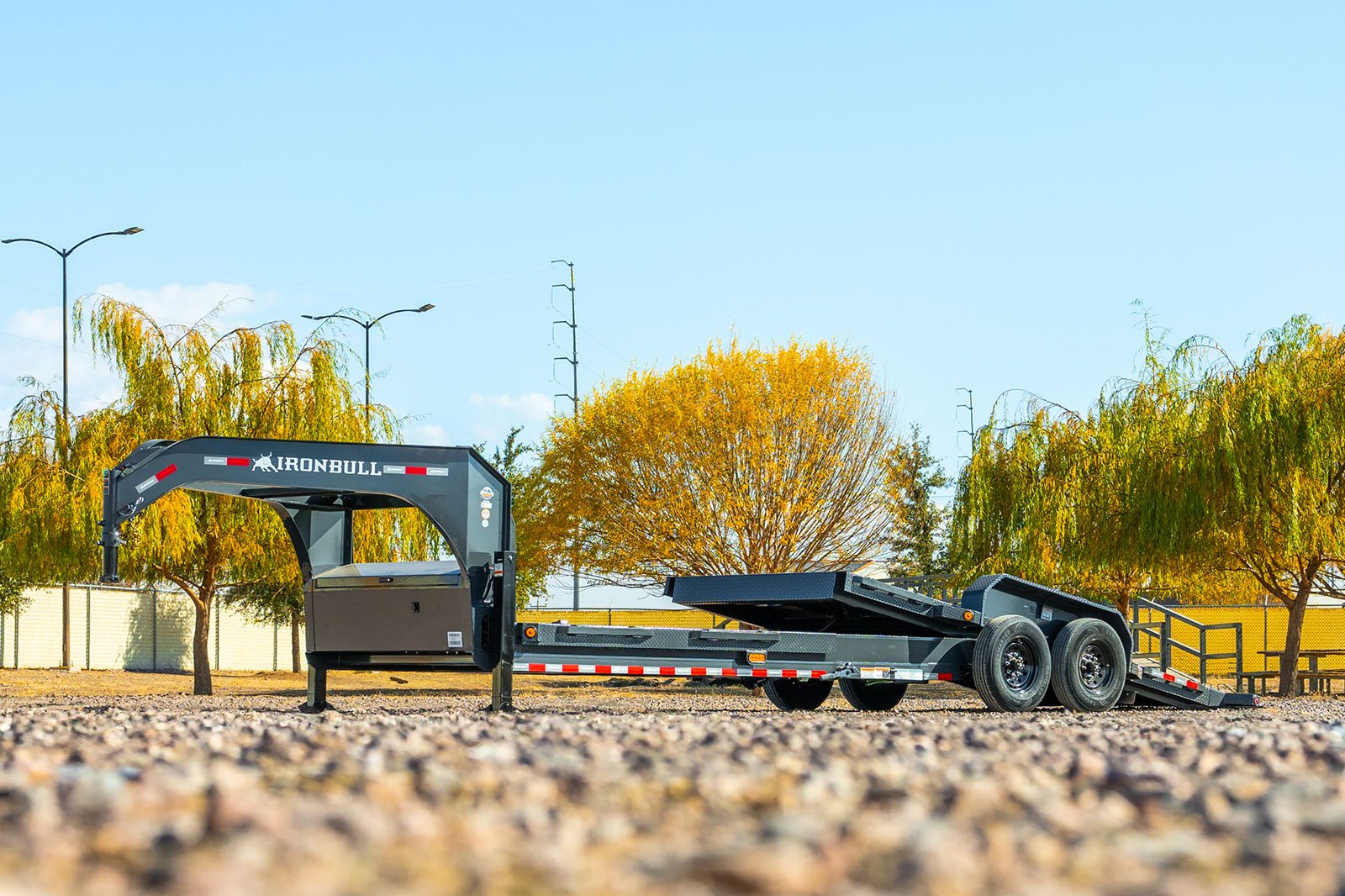

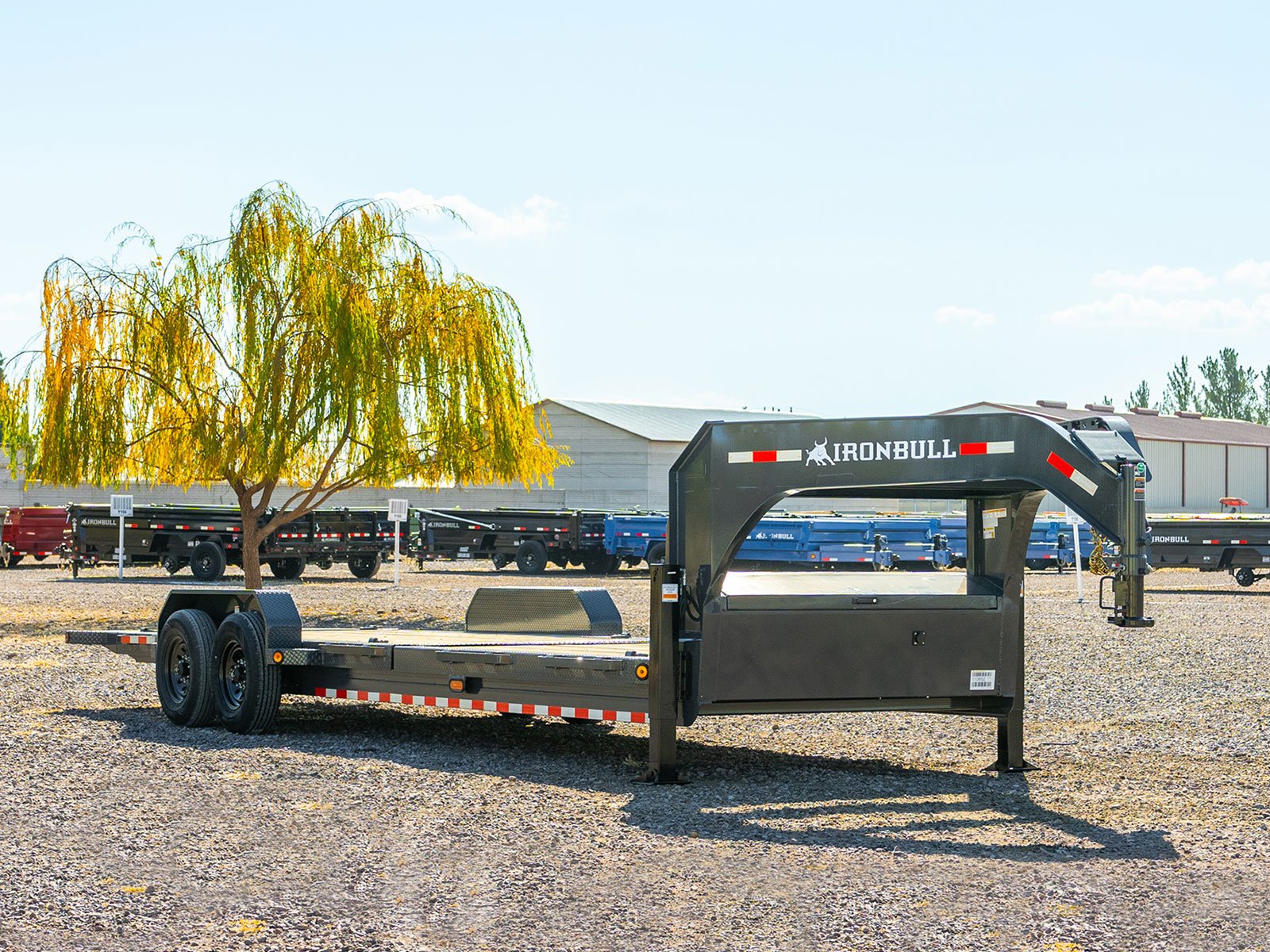

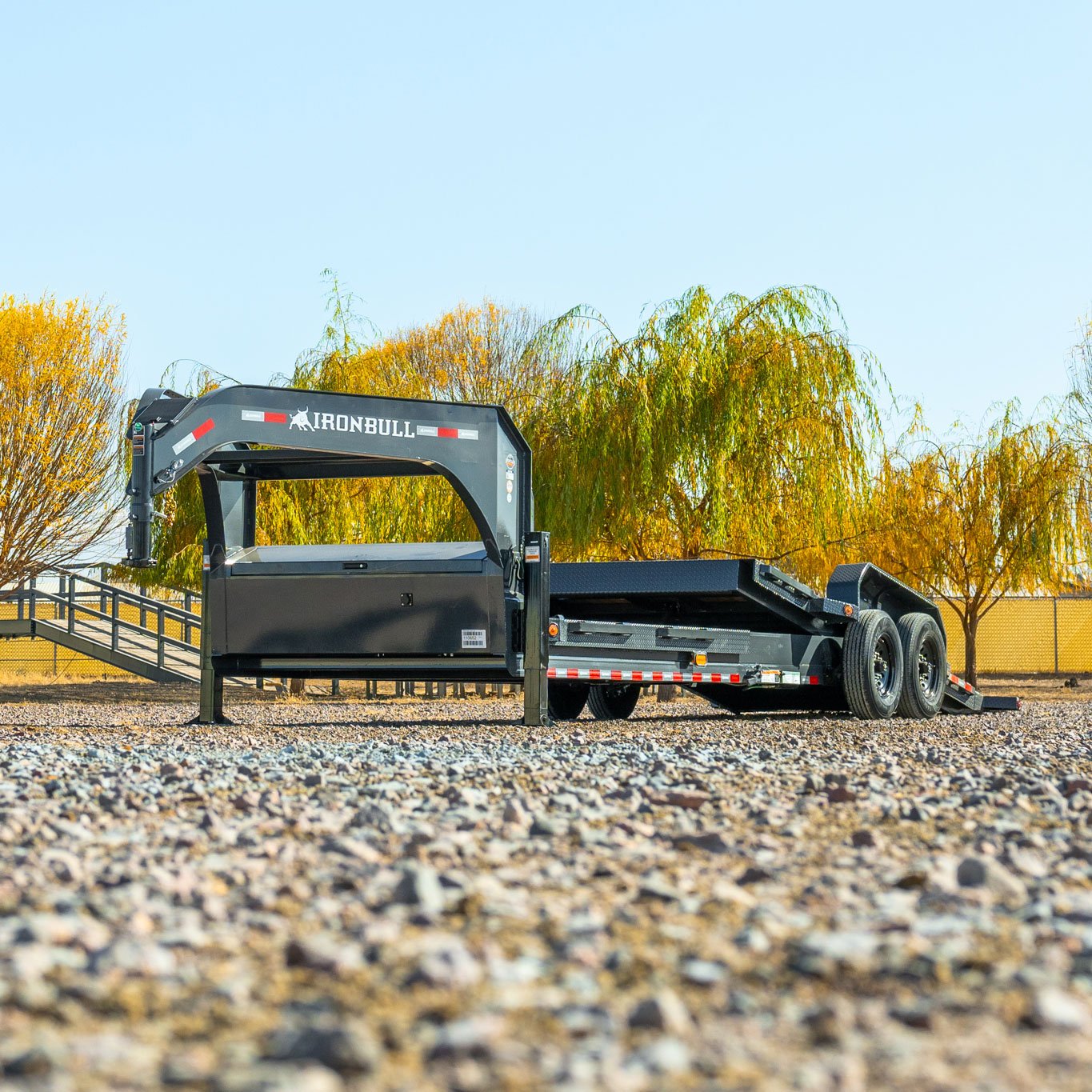

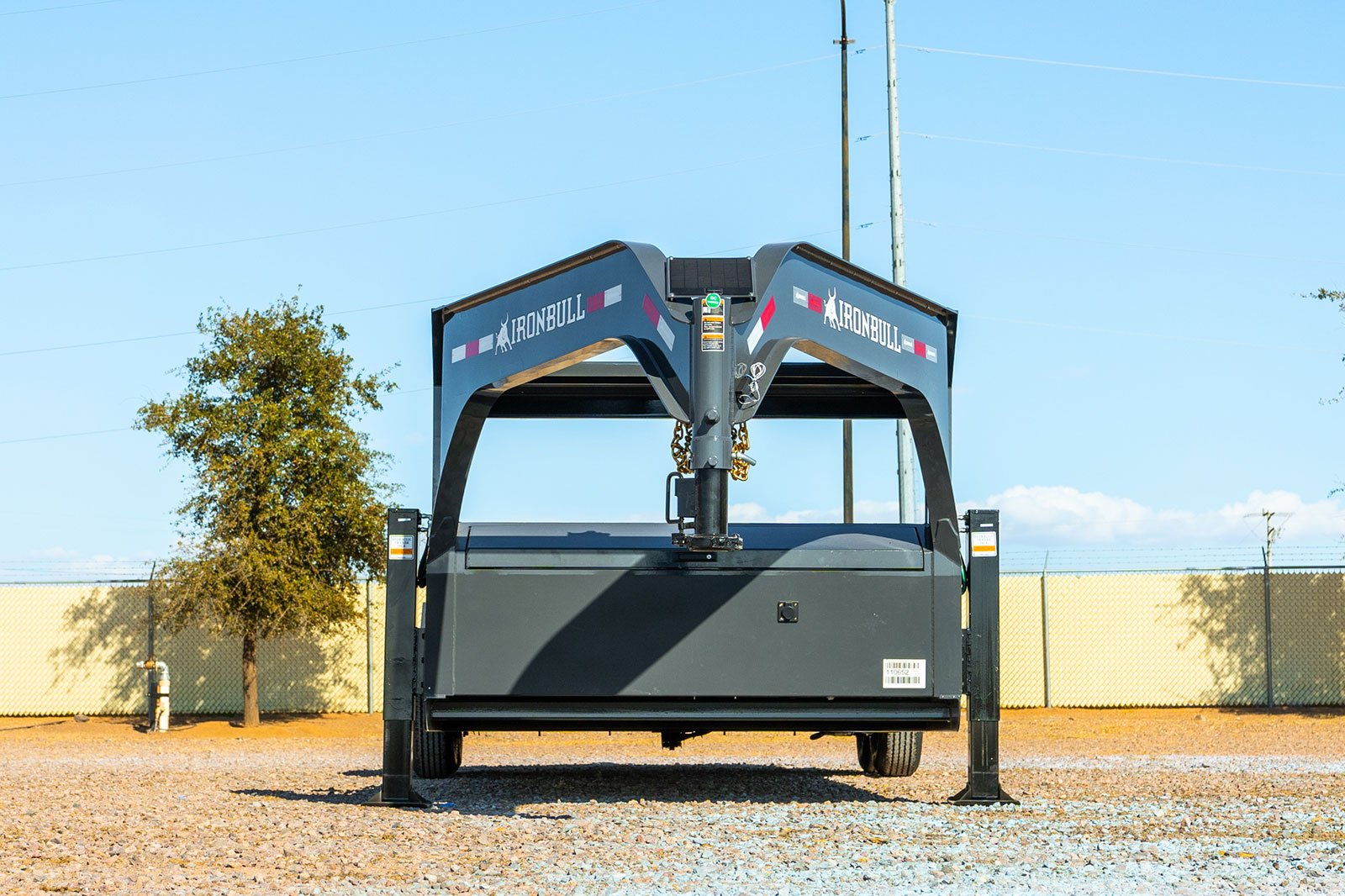

The Iron Bull Trailers TLG14 Low Pro Gooseneck Tilt Trailer is a rugged, low‑profile gooseneck tilt built for easy loading and heavy‑duty hauling. With an 83″ wide deck and lengths from 16′ to 26′, this trailer supports 9,990–14,000 lb GVWR and is available in tandem or triple‑axle configurations, making it ideal for equipment, vehicles, and construction materials.

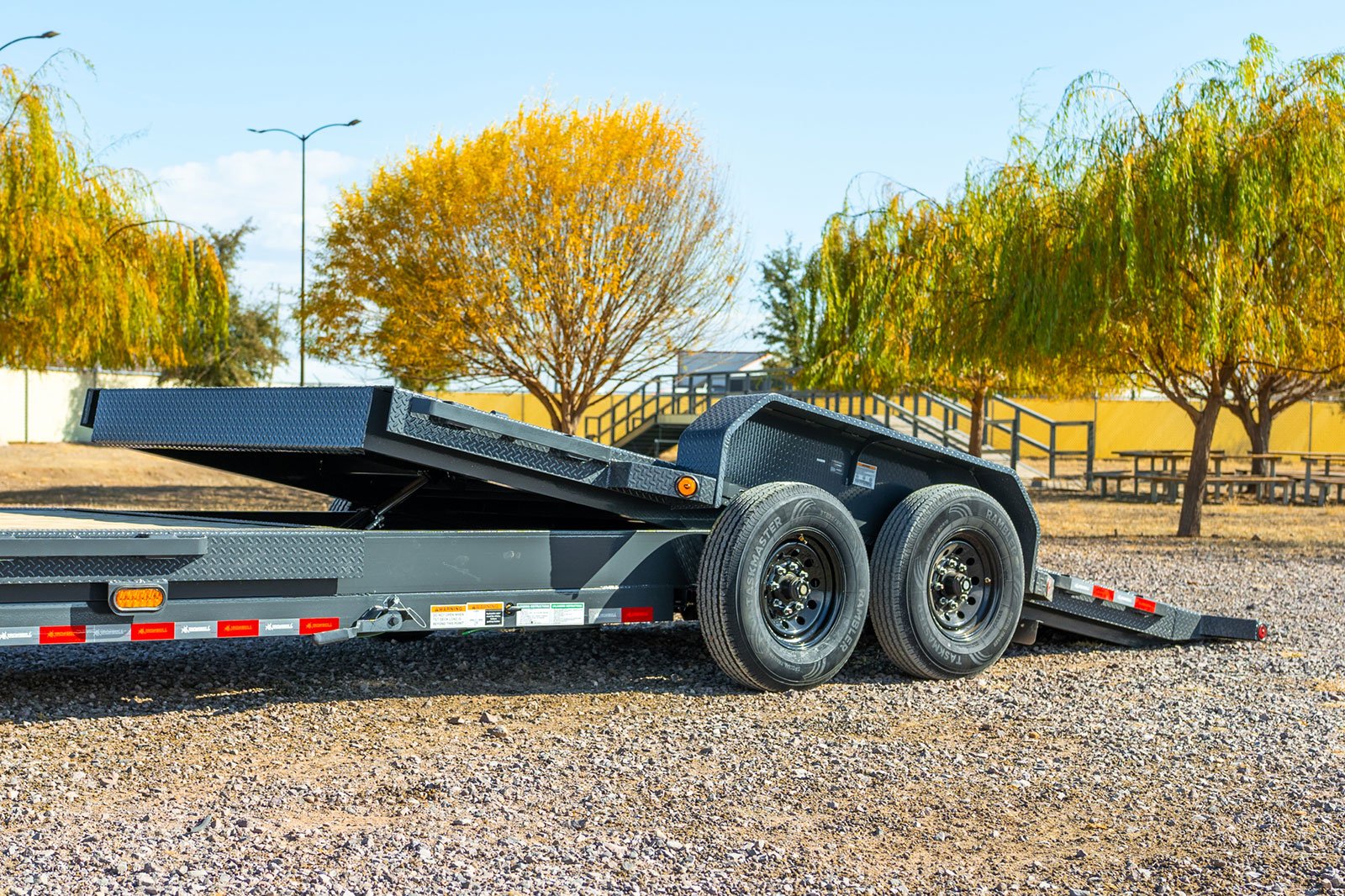

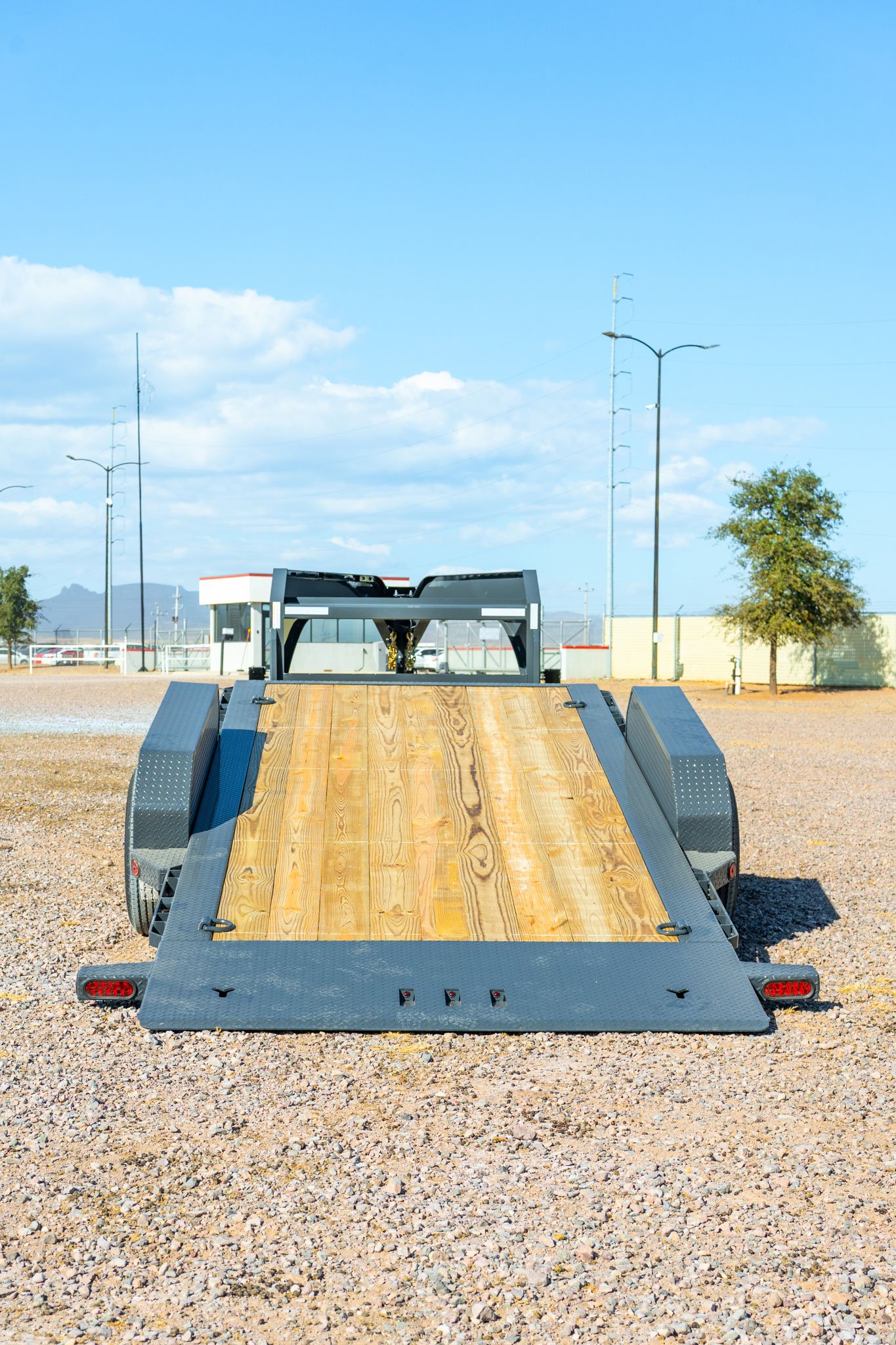

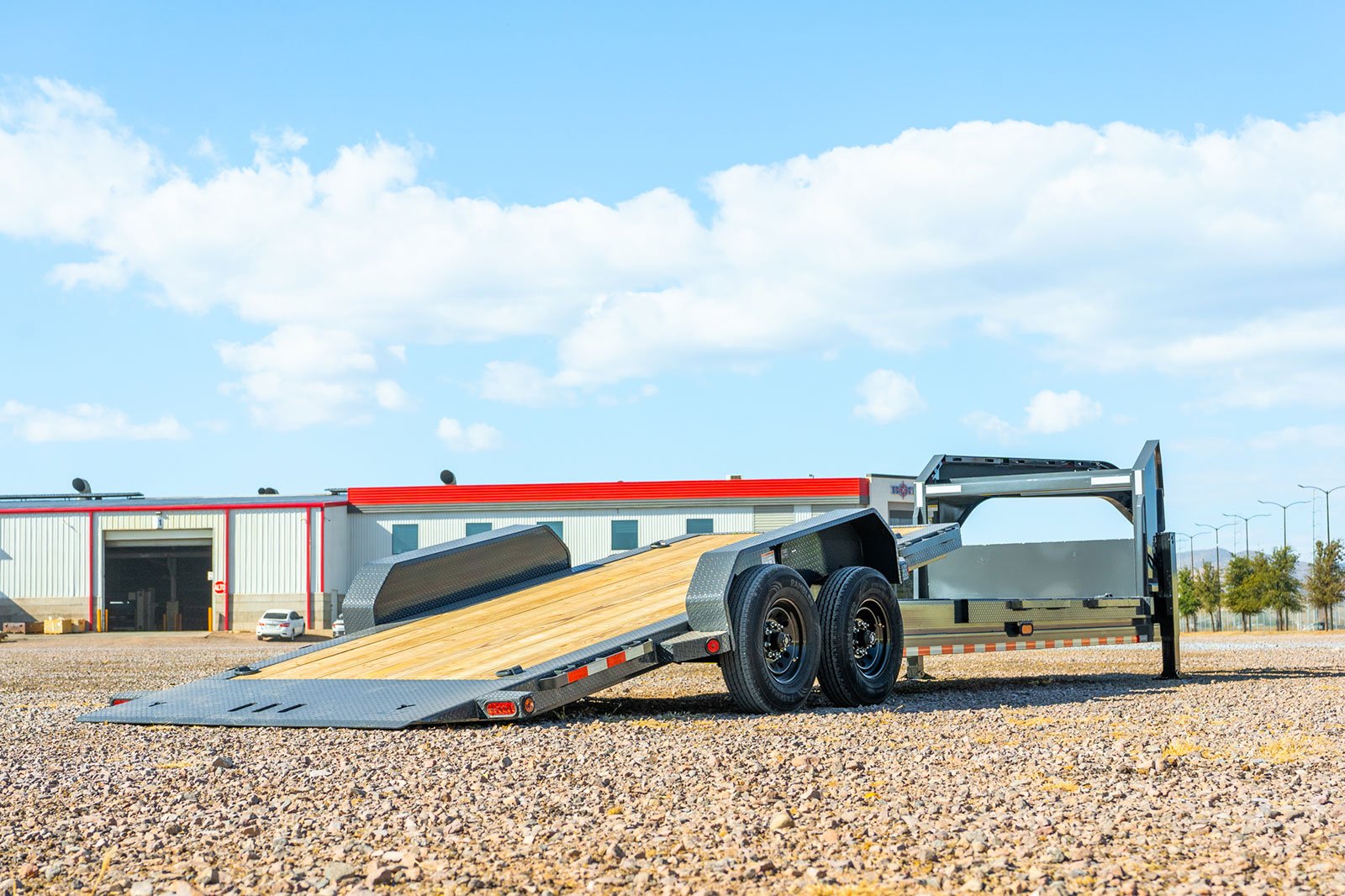

Engineered with a 20″ deck height, full 83″ clearance between the fenders, and an 11‑degree loading angle, the TLG14 Low Pro Tilt eliminates the need for high‑angle ramps and lets you slide, drive, or push loads on and off with ease. Whether you choose gravity‑tilt operation or full power‑assisted tilt up and down, this gooseneck tilt trailer brings versatility and speed to nearly any job.

Built by Iron Bull Trailer Manufacturing, the TLG14 delivers a “jack‑of‑all‑trades” solution for homeowners, contractors, landscapers, and equipment haulers. Its low‑pro gooseneck design pairs with a range of options so you can customize loading style, capacity, and handling to match your truck and daily workload providing a smooth, safe, and efficient way to move gear while keeping your beds and curbs clean.

Width	Length	GVWR	Axles	Tire/Wheel	Stationary	Weight
83″	16′	9,900 lb	2 × 5,200 lb	225/75R16 6 Hole	0′ (Power Tilt Only)	3,200 lb
83″	18′	9,900 lb	2 × 5,200 lb	225/75R16 6 Hole	2′	3,400 lb
83″	20′	9,900 lb	2 × 5,200 lb	225/75R16 6 Hole	4′	3,500 lb
83″	22′	9,900 lb	2 × 5,200 lb	225/75R16 6 Hole	6′	3,600 lb
83″	18′	14,000 lb	2 × 7,000 lb	235/80R16 8 Hole	2′	3,700 lb
83″	20′	14,000 lb	2 × 7,000 lb	235/80R16 8 Hole	4′	3,800 lb
83″	22′	14,000 lb	2 × 7,000 lb	235/80R16 8 Hole	6′	4,000 lb
83″	24′	14,000 lb	2 × 7,000 lb	235/80R16 8 Hole	8′	4,200 lb
83″	23′	14,000 lb	2 × 7,000 lb	235/80R16 8 Hole	10′	4,400 lb
